R900
HG Hyper Grinder
Beschreibung des Produkts

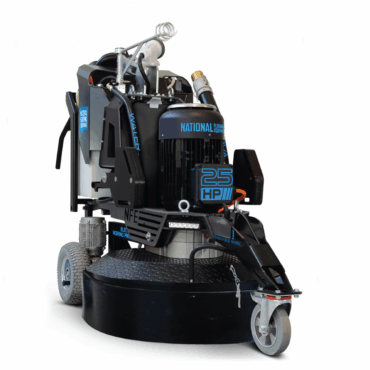

R900 Concrete Grinder
Remote-controlled planetary grinding and polishing machine for
large surfaces, with variable speed, adjustable working pressure,
on board batteries and Autodrive system.
Main technical features:
• Adjustable working pressure. • Tempered stainless steel
planetary and gear box. Fully geared transmission. • Third wheel
for easy transportation and for operations on very large surfaces.
• Compact and handy. • Automatic planetary lifting to facilitate
loading and unloading procedures from vehicles. • All functions
available on remote controls. • On board batteries for machine
self displacement. • Utensils free quick attachment system for
diamond tools.
Applications:
• Smoothing and preparation of all types of floors. • Unevenness
removal on concrete. • Removal of resins, glues, paints and other
residues. • High glossy mirror look polishing of marble and granite.
• High glossy mirror look polishing of industrial concrete floors.
ESTIMATED PRODUCTION
Concrete Polishing 7 step 35-40m2/h
Concrete Grinding 1 step 170-200m2/h
Terrazzo Polishing 5 step 40-50m2/h
Resin Removal 1 step 170-200m2/h
Paint Removal 1 step 170-200m2/h
Marble Polishing 5 step 30-40m2/h
Granite Polishing 7 step 20-25m2/h
Data may vary depending on surface conditions, tools used, operator
convenience, equipment, etc.
755 Kg
*We reccomend pairing the R900 with the DLX75 Dust Collector.
Technical Data:
| Motor | Drive Inverter | Volt | Hertz | Amp | Tool Speed | Work Diameter | Tools Size | Water Tank | L x A x P |
| 25 HP | 18,5kW | 380-480 | 50/60 | 32 | 300-1300rpm | 0–MM | 3X11″ | 46 lt | 150 x 150 x 95 |
